IBC storage cabinets
Sall designs and manufactures IBC storage cabinets for people and environmental risks and dangers prevention that can be caused by accidental spills of hazardous, polluting, flammable and corrosive liquids.
IBCs can in fact be damaged by unwise forklift handling and can lead to possible spills also during filling, transfer or emptying operations, therefore it is crucial to properly store IBC.
Sall’s bunded IBC cabinets are designed and manufactured respecting the most stringent quality standards as well as international and EU regulations to ensure IBC compliant indoor and outdoor storage and the highest safety level.
All the IBC stores of this line are characterized by a heavy duty welded steel structure made of certified and traceable top quality steel.
The standard models are equipped with air vents, single or twin hinged doors, built-in certified spill containment pallet.
Welding and watertight are UNI EN ISO 3834:2-2021 compliant (current version of EU standard) to guarantee the products’ quality and maximum usage safety.
The air vents are designed for the optimal natural air flow within the cabinets, this is necessary to prevent dangers that could stem from a possible internal gas saturation.
The integrated spill containment pallet id equipped with a self-supporting heavy load grid that can be easily removed for most efficient cleansing and inspecting operations.
On request the spill pallet can be delivered also with internal acid-proof coating made of a special plastic material. Thanks to this coating you can benefit of both the durability and sturdiness of the steel structure and plastic spill sump resistance to acids and corrosive liquids. Sall bunded IBC cabinets with the plastic spill pallet’s coating are in fact highly appreciated by companies operating in the chemical-pharmaceutical sector, as well as in the leather and healthcare industries, because of their daily usage of acids in production.
Sall’s creates also tailor-made cabinets based on the specific hazard class and the technical data sheet concerning the substance to be stored and every Country’s locally-applicable regulations.
The complete IBC cabinets line is ideal for storing from 1 to 12 IBC (1000 Liters), offering suitable models for the storage of hazardous, polluting and flammable liquids.
All standard models are customizable in terms of surface treatments (painting and galvanization), can be equipped with anti-intrusion locking system and can be equipped with accessories according to customer’s needds.
On request, Sall’s Engineering Department design custom storage cabinets for IBC such as for example thermal insulated IBC stores and fire-rated cabinets for all fire resistance classes according to customer’s specifications and the type of substance to be stored.
For the containment of numerous IBC you can easily find the solution you need in the Sall’s modular storage buildings and bunded IBC stores lines.
Painted steel 1 IBC storage cabinets for hazardous and polluting liquids
For acids and corrosive liquids the specific plastic coating treatment is available on request.
ECO 720 is the compact solution for the outdoor storage of 1 IBC (1000 lt.):
- Louvered vented sides for optimal internal air flow.
- Top cover with gas shock absorbers.
- Hinged doors can be padlock to prevent unauthorised personnel access.
Technical data – Bunded IBC cabinets to hold 1 IBC x 1000 liters
| Art. Nr. | ECO 720 A |
|---|---|
| External Dimensions: L x W x H (mm) |
1350x1660x1900 |
| Internal Height (mm): | 1280 |
| Capacity (L): | 1000 |
| Number of 1000 L IBCs: | 1 |
| Doors: | Hinged door |
| Walls: | Side walls with lamellar-shaped air intake slots to ensure necessary air circulation. |
| Air Vents: | Standard ventilation grilles |
| Surface Treatment: | Powder coating in standard Orange color - any other color available upon request |
| Suitable for: | Polluting and hazardous substances, and pollutants - acids with special coating available upon request. |
This model can be equipped with IBC tilted support (code: SPC101 available in galvanized steel or overpainted versions).
This bunded IBC cabinet can be used also for safe emptying and filling IBCs.
Suitable for flammable liquids, it is equipped with air vents with a passage area equal to 1/30 of plant surface to prevent internal flammable vapours related risks.
Technical data – flammables bunded IBC storage cabinets to hold 1 IBC x 1000 liters
| Art. Nr. | ECO 721 A |
|---|---|
| External Dimensions (mm): | 1350x1660x2535 |
| Internal Height (mm): | 1809 |
| Capacity (L): | 1000 |
| Number of 1000 L IBCs: | 1 |
| Doors: | Swing Door |
| Surface Treatment: | Standard Orange Powder Coating - Any other color available upon request |
| Suitable for: | Polluting, hazardous, and flammable substances - Acid-resistant coating available upon request |
Hot dip galvanized steel storage cabinets for 1 IBC
For acids and corrosive liquids models can be equipped with specific spill pallet’s plastic coating.
Model ECO 719 is a practical storage solution designed for both indoor and outdoor storage of 1 IBC (1000 liters) or smaller recipients.
ECO 719 IBC cabinet is available in the following versions:
- ECO 719 Z made of galvanized steel
- ECO 719 ZB made of blue overpainded galvanised steel structure
- ECO 719 BZ made of galvanised steel top and sides and bue overpainted spilll containment pallet and base.
Any other colour painting is available on request.
MAIN FEATURES:
- Hot-dip galvanized and blue painted spill pallet.
- Removable galvanized spill pallet’s heavy load and self-supporting grid is split into 2 segments to facilitate the removal for easy cleansing and inspecting operations.
- Hot-dip galvanized steel structure.
- Top made of press-bent galvanized steel.
- Single hinged door with safety locking system to prevent unauthorized people access.
Technical data – galvanized steel 1 IBC bunded cabinet
| Art. Nr. | ECO 719 BZ | ECO 719 Z |
|---|---|---|
| External Dimensions: L x W x H (mm) |
1405x1810x2625 | 1405x1810x2625 |
| Internal Height (mm): | 1900 | 1900 |
| Capacity (L): | 1000 | 1000 |
| Number of 1000 L IBCs: | 1 | 1 |
| Doors: | Swing door | Swing door |
| Walls: | ide walls with lamellar-shaped air intakes | ide walls with lamellar-shaped air intakes |
| Surface Treatment: | Galvanizing and over-painting in standard blue tank color - any other color available upon request | Galvanizing and over-painting in standard blue tank color - any other color available upon request |
| Suitable for: | Polluting and hazardous substances, and flammable materials - acid-resistant coating available upon request | Polluting and hazardous substances, and flammable materials - acid-resistant coating available upon request |
Technical data – 1 IBC bunded store made of overpainted galvanised steel
| Art. Nr. | ECO 719 ZB |
|---|---|
| External Dimensions: L x W x H (mm) |
1405x1810x2625 |
| Internal Height (mm) | 1900 |
| Capacity (L): | 1000 |
| Number of 1000 L IBCs: | 1 |
| Doors: | Swing door |
| Surface Treatment: | Galvanizing and over-painting in standard blue tank color - any other color available upon request |
| Suitable for: | Polluting and hazardous substances, and flammable materials - acid-resistant coating available upon request |
ECO731 models are designed for IBC tilted support usage (Code: SPC 102Z) and for flammables air vents (Code: GV 731).
These storage cabinets can be effectively used for both IBC emptying and filling operations as well as for the IBC indoor and outdoor storage.
ECO731 is ideal for liquids that do not require thermal insulated storage whereas the ECO371IT model is suitable for all the liquids that must not undergo thermal shocks and humidity.
The ECO 731 IT version provide in fact the optimal thermal insulation thanks to the interposition of 50 mm mineral wool among galvanized steel panels.
This is the model suggest to prevent overheating caused by sunlight as well as condensation during cold weather.
Technical data – 1 IBC insulated storage cabinet ECO731IT
| Art. Nr. | ECO 731 | ECO 731 IT - Coibentato |
|---|---|---|
| External Dimensions: Length x Width x Height (mm) |
1530x1720x2585 | 1600x1870x2565 |
| Internal Height (mm) | 1295 | 1295 |
| Capacity (L): | 1000 | 1000 |
| Number of 1000 L IBCs: | 1 | 1 |
| Doors: | Swing door with anti-intrusion locking system | Swing door with anti-intrusion locking system |
| Walls: | Side walls with lamellar-shaped air intakes | Thermal insulation provided by mineral wool sandwich panels |
| Surface Treatment: | Powder coating in standard Orange color - any other color available upon request | Powder coating in standard Orange color - any other color available upon request |
| Suitable for: | Polluting and hazardous, flammable substances - acid-resistant coating available upon request | Polluting and hazardous, flammable substances - acid-resistant coating available upon request |
Galvanized steel bunded IBC cabinets with coorugated walls
For acids and corrosive liquids the internal specific plastic coating is available on request.
IBC safety cabinet for 1 IBC (1000 liters) storage with built-in spill containment pallet made of grey overpainted steel spill pallet.
The heavy load and self-supporting hot- dip galvanized spill pallet’s grid is easily removable for efficient cleansing and inspection of the spill pallet.
Walls and top are made of galvanized and press-bent corrugated steel, inner walls are also equipped with 500 mm high spalshguards.
Hinged doors are equipped with key locking system and the feet (height 90mm) are designed for ground fixing.
ECO 731NZ model, like all other models of this line, can be handled with forklift truck of adequate capacity thanks to its fork extensions.
Air vents for flammable liquids storage are available on request and have a passage area equal to 1/30 of the plant surface to prevent internal flammable vapours saturation.
Technical data – Corrugated steel bunded cabinet for 1 IBC
| Art. Nr. | ECO 731 NZ |
|---|---|
| External Dimensions: L x W x H (mm) |
1870x1560x2590 |
| Internal Dimensions: L x W x H (mm) |
1660x1350x1895 |
| Capacity (L): | 1000 |
| Number of IBCs of 1000 L: | 1 |
| Doors: | Swing door with anti-intrusion locking system |
| Walls and Roof: | Side walls and roof constructed with galvanized steel profiles and corrugated galvanized sheet metal with high relief |
| Surface Treatment: | Galvanization for walls and roof Powder coating for the tank |
| Suitable for: | Polluting and hazardous substances - acid-resistant lining available on request, and ventilation grids for flammables available on request. |
| Collection Tray: | Integrated collection tray made of painted steel in RAL 9006 color |
Most request customization of this model:
- Spill pallet with plastic internal coating for acids and corrosive liquids containment.
- Painting in any colour as per customer’s preferences.
Steel 2 IBC storage cabinets – suitable for hazardous, polluting and flammable substances
Model ECO 732 L is available also as insulated version.
For acids and corrosive liquids the spill containment pallet can be equipped with plastic internal coating.
IBC storage cabinet with no thermal insulation for storing 2 IBCs (1000 liters).
Its structure made of certified steel is equipped with an integrated watertight tested spill pallet, open doors holder doors and standard air vents.
The spill pallet has a standard capacity of 1000 liters and is equipped with a heavy load and self-supporting steel grid made of hot-dip galvanized steel that makes it easily removable to allow easy and safe inspection and cleansing operations.
Hinged doors are provided with key locking system to prevent unqualified Personnel from accessing the depot. On request, alarm systems are available.
Technical data – Insulated depot for 1 IBC
| Art. Nr. | ECO 732 L |
|---|---|
|
External dimensions: L x W x H (mm) |
2875x2020x2345 |
| Internal dimensions: L x W x H (mm) |
2690x1670x1885 |
| Number of 1000 L IBCs: | 2 |
| Doors: | Hinged door with intruder-proof locking system |
| Walls and roof: | Steel sidewalls and roof |
| Surface treatment: | Powder coating |
| Suitable for: | Hazardous and polluting substances - for flammable materials with appropriate ventilation grilles. |
Most requested accessories for this model:
- Optional air vents for the storage of flammable material, with passage area equal to 1/30 of plant surface to prevent flammable gas internal saturation.
- Internal coating of the spill pallet with anti-acid plastic material to safely contain corrosive liquids.
Insulated IBC cabinet for the storage of 2 IBC. This model is suitable for all those liquids that must not undergo thermal shock and must maintain their properties, otherwise risking development of dangerous reactions. Thermal insulation is guaranteed thanks to its mineral wool panels, 50 mm thick, enclosed in walls, doors and roof top.
The structure is provided with an internal height specifically designed to serve as storage and dosing station, predisposed for the application of inclined supports to facilitate transfer operations.
Like all the other IBC cabinets of this line it is is also equipped with built-in spill pallet (1000 lt capacity) and removable hot-dip galvanized steel grating, anti-intrusion locking system, standard air vents and hooks to lock doors in open position for easy handling operations.
Technical data – Insulated depot for 1 IBC
| Art. Nr. | ECO 732 L IT |
|---|---|
| External Dimensions: L x W x H (mm) |
2929x1867x2392 |
| Internal Dimensions: L x W x H (mm) |
2690x1670x1885 |
| Number of 1000 L IBCs: | 2 |
| Doors: | Insulated swing doors with intrusion-resistant locking |
| Walls and Roof: | Steel walls and roof with thermal insulation |
| Surface Treatment: | Powder coating |
| Suitable for: | Hazardous and polluting substances - for flammables with specific ventilation grids |
Most requested accessories for this model:
- Flammables air vents with passage area equal to 1/30 of plant surface to prevent flammable vapours saturation within the storage unit.
- Anti-acid internal coating of the spill pallet.
- Shelving and interior dividers for models with adeguate interior space for these accessories.
- IBC tilted supports.
- Door keeper to hold the doors open during operations on drums.
- Internal spill pallet’s coating for acids and corrosive liquids containment.
- Thermal insulation.
- Spill pallet alarms.
- REI certifications for fire-rated IBC cabinets as per customer’s request.
- Custom made solutions for explosives.
- Heavy duty and compact design for storage space optimization.
- Air vents for internal gas saturation prevention.
- Spill containment pallets are always watertight tested in compliance with UNI EN ISO 3834:2-2021 for people, environment and groundwater safety.
- High load capacity, self-supporting and removable spill pallet’s grid made of hot galvanized steel allows safe and efficient cleasing and inspecting operations.
- Multi-stage powder painting creates a thick (from 80 up to 100 micron) ultra-resistant film that protects the every part of the cabinets against rust, corrosion and weathering.
- Hot-dip galvanization provides great weathering and corrosion resistance.
- Base designed for a stable and safe forklift handling.
- Hinged doors equipped with anti-intrusion locking system to prevent unauthorized personnel access.
- Customization as per customer’s needs.
- Surface treatment: hot-dip galvanization and/or overpainting as per customer’s desired colour.
- EI certified panels for optimal thermal insulation and fire-resistance.
- REI certification for all fire resistance classes.
- Dimensions and capacity can be customized according to customer specifications and Country’s applicable regulations.
- Internal plastic coating of spill pallet for acids and corrosive liquids.
Request a free consulting and quotation for tailor-made IBC storage cabinets
Related products for IBC storage
Bunded IBC storage buildings
IBC storage buildings ideal for large quantities of IBC.
Modular bunded IBC stores
IBC modular bunded stores for best IBC storage flexibility.

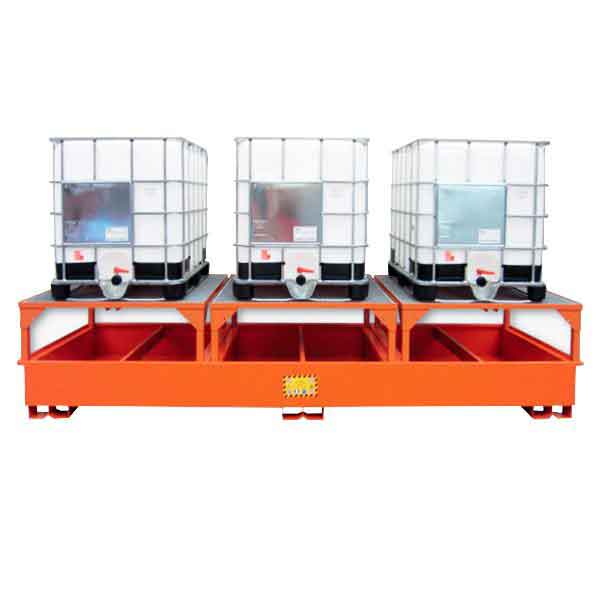

IBC bunds and spill pallets
